Steel Beam
Build it Strong, Build it Once. Our high-grade Steel Beams (I-Beam & H-Beam) are the ultimate choice for a safe and durable building. Whether it’s a factory or a warehouse, give your structure the strength it deserves. Extra Strong: Made from high-tensile steel to carry heavy loads easily. Rust Resistant: Special coating to protect against Bangladesh’s humid weather. Time-Saving: Perfect for PEB (Pre-engineered building)—fast and easy to install. Smart Saving: Reduces your overall steel shed building costing with efficient design. Trusted Quality: Supplied by the best steel structure company in Bangladesh. Get the best price for your project today!
Product Description

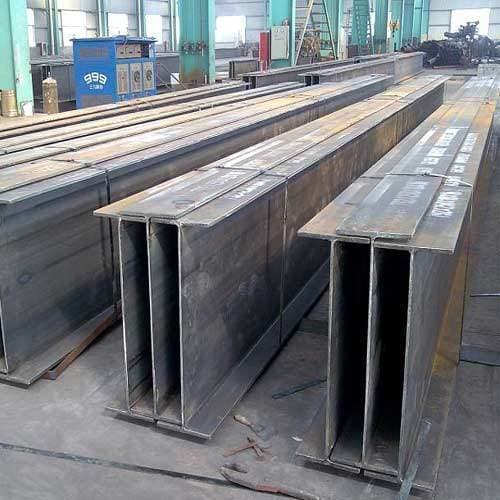

Steel Beam for PEB & Industrial Buildings - Custom I & H Sections
A steel beam is a horizontal support that carries the weight of a building’s roof, floors, and machinery. City Steel Corporation manufactures every steel beam to handle specific load requirements, ensuring your factory or warehouse stays stable under heavy pressure without bending.
You get sections that span up to 30 metres without middle columns, high-strength plates up to 25mm thick, and rust protection that lasts decades. We fabricate these in our Savar factory using CNC cutting and submerged arc welding. This product fits factory owners, warehouse developers, and contractors building Pre-Engineered Buildings (PEB) anywhere in Bangladesh.
Why Choose City Steel for Your Steel Beam?
Carries Heavy Loads with Custom Built-Up Sections
We design each steel beam based on the specific weight it must carry. Unlike standard hot-rolled sections that come in fixed sizes, our built-up beams are welded to your exact depth and thickness needs. This means you do not pay for extra steel you don't need, which lowers your total project cost.
Longer Clear Spans for Open Floor Space
Our steel beam design allows for "clear spans," meaning the beam reaches from one wall to the other without needing support columns in the middle. For a 20-metre or 30-metre wide warehouse, this creates more room for moving forklifts, installing machines, or storing inventory.
Hot-Dip Galvanized Coating Resists Rust for 25+ Years
In the humid climate of Bangladesh, raw steel rusts quickly. We offer hot-dip galvanized or epoxy-painted finishes. A galvanized coating protects the steel from corrosion for over 25 years, even in high-moisture areas like Gazipur or Narayanganj.
Fabricated to ASTM & AISC Standards
Every steel beam we produce follows international standards like ASTM A36 or A572 Grade 50. This ensures the steel has a yield strength of 250 MPa to 345 MPa. You get a building that is safe, passes inspections, and resists high wind speeds or seismic activity.
Bolt-Ready Fabrication for Quick Installation
We pre-punch holes and weld connection plates at our factory. When the beams arrive at your site, your crew simply bolts them together. This "Meccano-style" assembly is 40% faster than traditional RCC construction and reduces errors on the job site.
Technical Specifications: Steel Beam
| Specification | Details |
| Product Type | Welded Built-up / Hot-rolled Steel Beam |
| Steel Grade | ASTM A36 / ASTM A572 Grade 50 / MS |
| Section Type | H-Beam, I-Beam, Tapered, or Box Section |
| Yield Strength | 250 MPa to 345 MPa |
| Thickness / Gauge | 6mm to 25mm (Web and Flange) |
| Dimensions | Custom sizes (e.g., 200mm to 1200mm depth) |
| Coating / Finish | Red oxide primer / Hot-dip galvanized / Epoxy paint |
| Standard | ASTM, AISC, MBMA, BSTI |
| Fabrication | CNC-cut, automatic submerged arc welding |
| Lead Time | 7–15 days depending on tonnage |
Technical specs like "Yield Strength" tell you how much pressure the steel can take before it deforms. Higher grades like Grade 50 allow for thinner, lighter beams that carry the same load as thicker MS plates. Your final steel beam sizes are determined by our engineers based on your structural drawings.
Is This Steel Beam Right for Your Project?
This product is the best choice for industrial projects requiring wide, open spaces. If you are building a garments factory, a cold storage unit, or a poultry shed, these beams provide the necessary roof support. They are also used as "crane beams" to support overhead traveling cranes that move heavy loads across a workshop.
Large-scale developers in Dhaka, Chittagong, and Savar use our beams for multi-storey steel buildings because they are lighter than concrete. This reduces the load on the foundation and saves money on piling.
Not ideal for: Small residential homes where traditional RCC (Reinforced Cement Concrete) might be cheaper for very short spans under 5 metres.
How City Steel Fabricates and Delivers Your Steel Beam
The process starts when you send us your architectural drawings. Our engineers perform the steel beam design to calculate the exact thickness needed. We then cut the steel plates at our Hemayatpur factory using CNC machines for 100% accuracy.

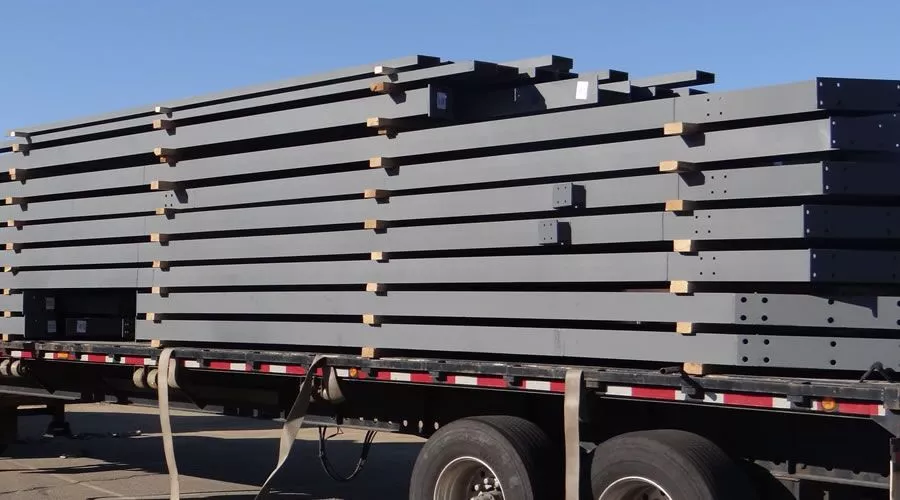

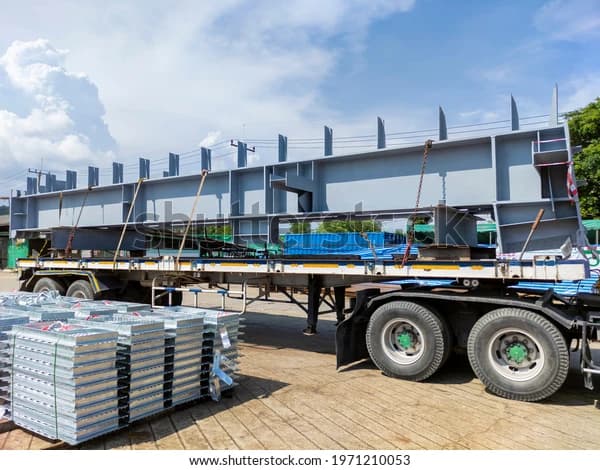

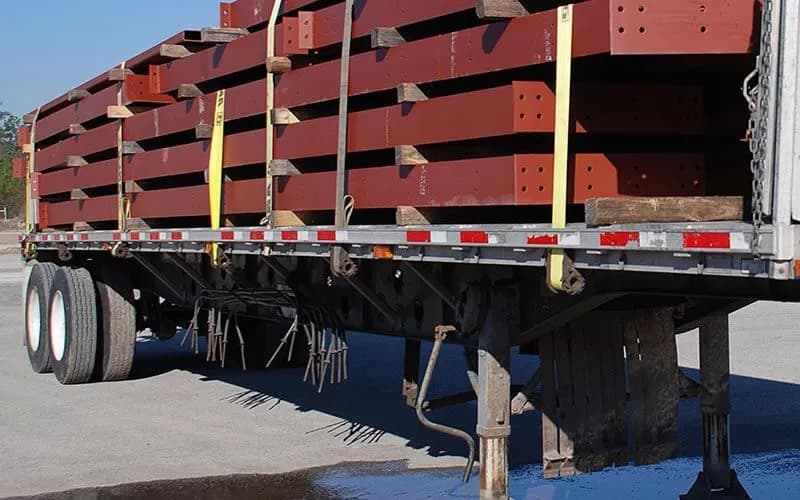

Once cut, the plates are welded using automatic submerged arc welding machines. This creates a stronger bond than manual welding. Every beam is cleaned and coated before being loaded onto trucks. We deliver nationwide, from Chittagong to Sylhet, and our trained erection crews can handle the on-site installation using cranes and high-strength bolts.
Why Order Your Steel Beam from City Steel Corporation?
City Steel Corporation has built steel structures across Bangladesh since 2015, with 150+ completed projects for clients like Singer Bangladesh, Vintage Garments, and the Bangladesh Army. You deal with the fabricator directly — design, factory fabrication, and on-site erection all happen under one roof.
What you get:
- Free quote and engineering consultation on your drawings.
- In-house fabrication in our own factory in Hemayatpur, Savar.
- Certified steel and standard-compliant welding.
- Delivery to project sites nationwide.
- Trained erection crews for safe, on-time installation.
- Fabrication and workmanship warranty.
- Flexible payment terms with VAT-inclusive quotes.
Call or WhatsApp our engineers: +880 1711-787556 / +880 1711-991775 (Sat–Thu, 9 AM – 6 PM).
Steel Beam - Frequently Asked Questions
What is the current steel beam price per kg in Bangladesh?
The steel beam price changes based on the global price of raw MS plates, the required steel grade, and the coating type. Currently, prices are calculated per tonne. For a specific steel beam price per kg based on today's market, please send us your requirements for a same-day quote.
What are the standard steel beam sizes available?
We provide both standard hot-rolled sizes (like 150mm x 75mm) and custom built-up sizes. Built-up steel beam types and sizes are limitless; we can fabricate a web depth from 200mm to 1200mm to fit your specific building height and load.
Is a steel beam better than a concrete beam?
Yes, for industrial use. A steel beam is lighter, spans longer distances without support, and is faster to install. Concrete beams require weeks of curing time, while steel is ready to use immediately after bolting.
Can you provide the steel beam design for my factory?
Yes. If you have a floor plan, our structural engineers can provide the full design and calculation sheets. We ensure the beam sizes meet wind and earthquake safety codes for your specific location in Bangladesh.
Do you deliver to projects outside of Dhaka?
Yes, we deliver and install across all 64 districts. Whether your project is in the Chittagong EPZ or a rural area in North Bengal, we handle the logistics and on-site erection.
Products That Go With This
- Steel Column: The vertical members that support your beams.
- Steel Rafter: Used for the sloping part of the roof structure.
- Purlin: C or Z sections that sit on top of the beams to hold the roof sheets.
- Structural Nut Bolt: High-strength bolts used to connect beams to columns.
Get a Custom Quote for Your Steel Beam Today
Get the right support for your building with custom-engineered beams. Whether you need a single crane beam or a full warehouse frame, we provide high-strength steel that meets international safety codes. Avoid project delays by securing your fabrication slot now.
